OSIRX: from design to measurement.

An X-ray fluorescence spectrometer designed and integrated by Graiphic. Mechatronic design, instrumentation and LabVIEW control connect the machine to its measurement results.

All our work View the acquisitions

OSIRX spectrometer built in Graiphic’s workshop — OSIRX · design, software and integration

From CAD to the machine

Design, integration and LabVIEW control.

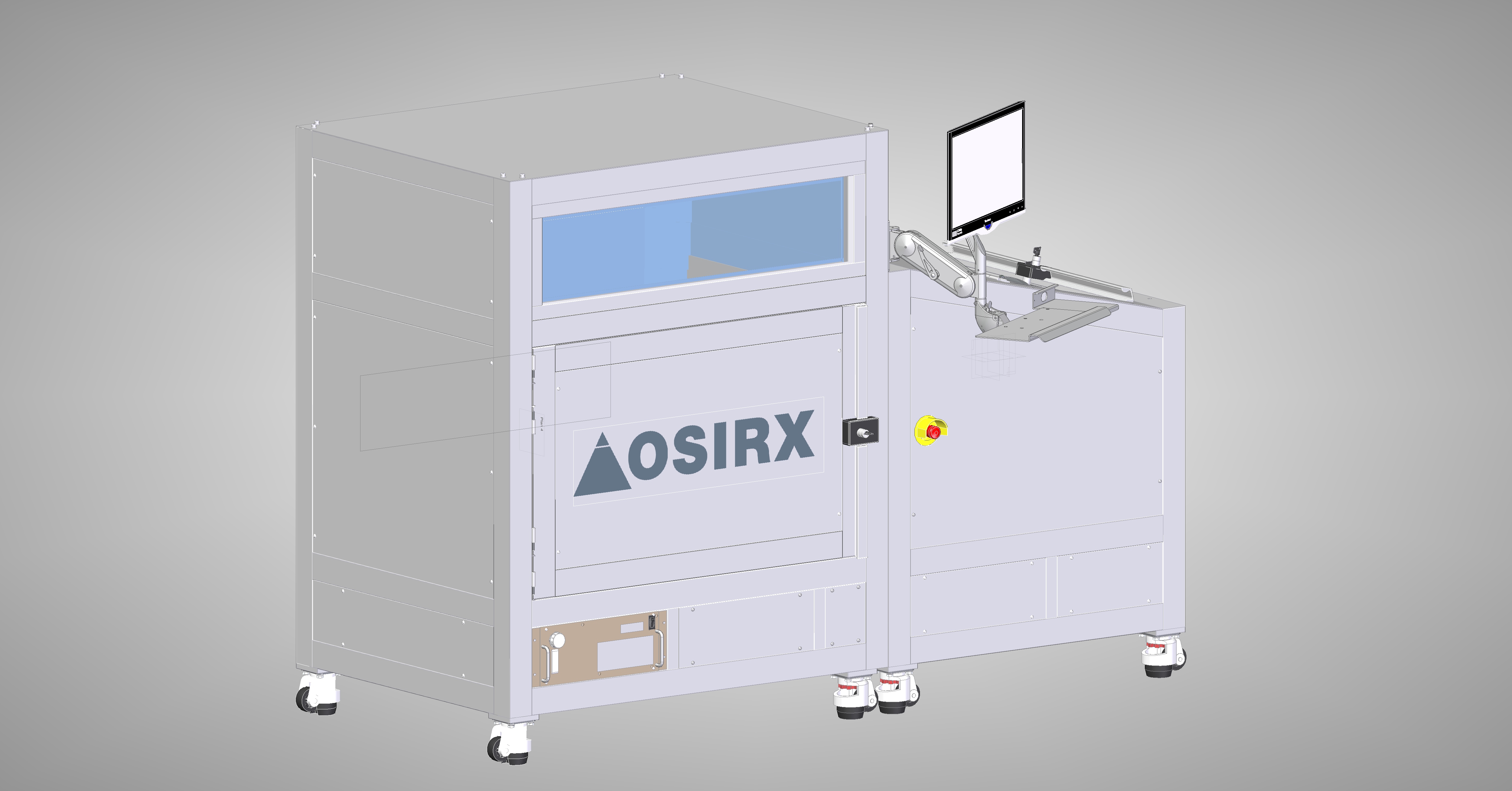

The OSIRX C CAD model, the machine in the workshop and its LabVIEW interface show the complete system: motorized axes, an X-ray source, safety states and the acquired spectrum.

Read the ADEME OSIRX project page

CAD model of the OSIRX C machine — Mechatronic design

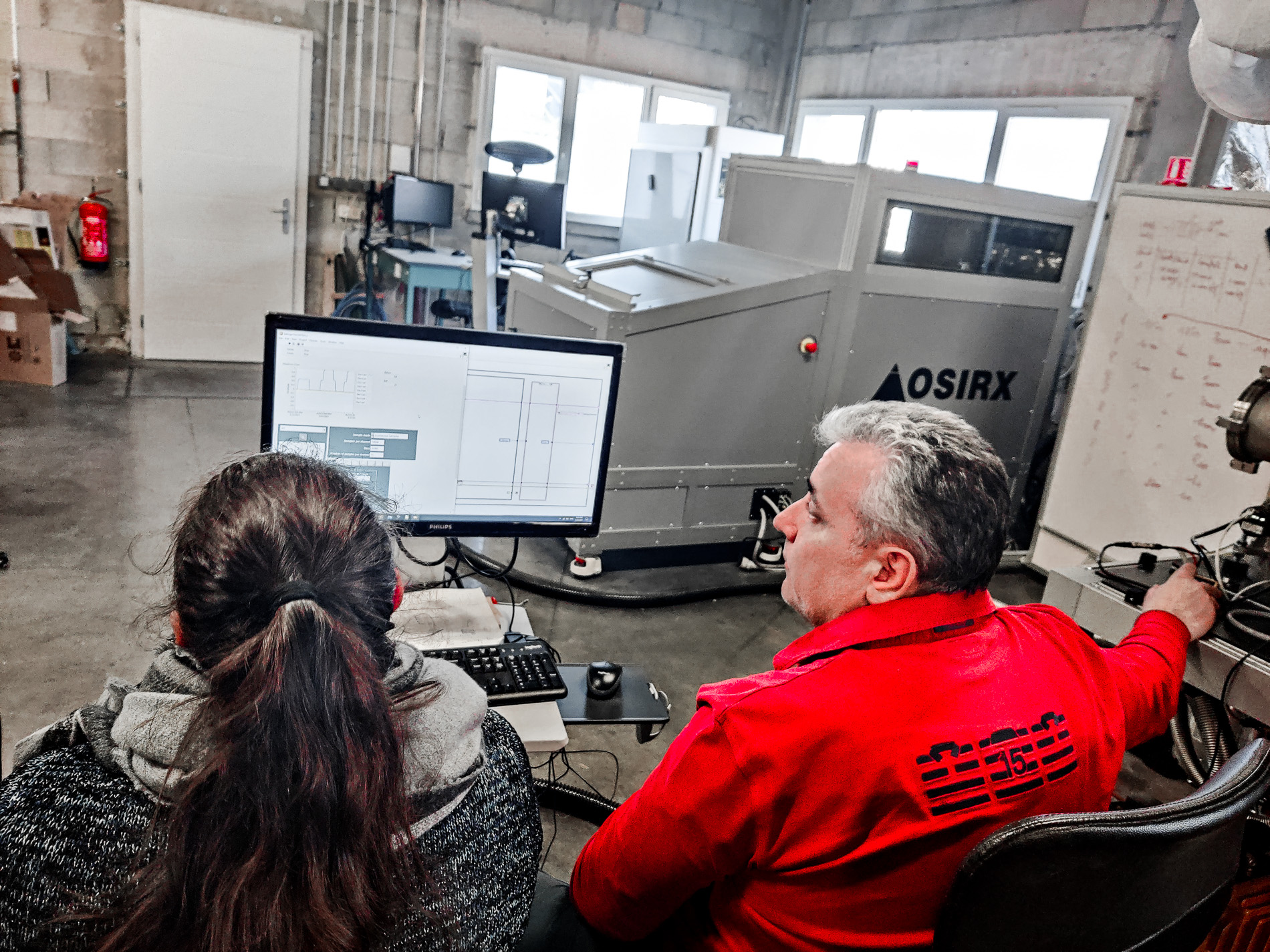

OSIRX spectrometer commissioning in the workshop — Commissioning

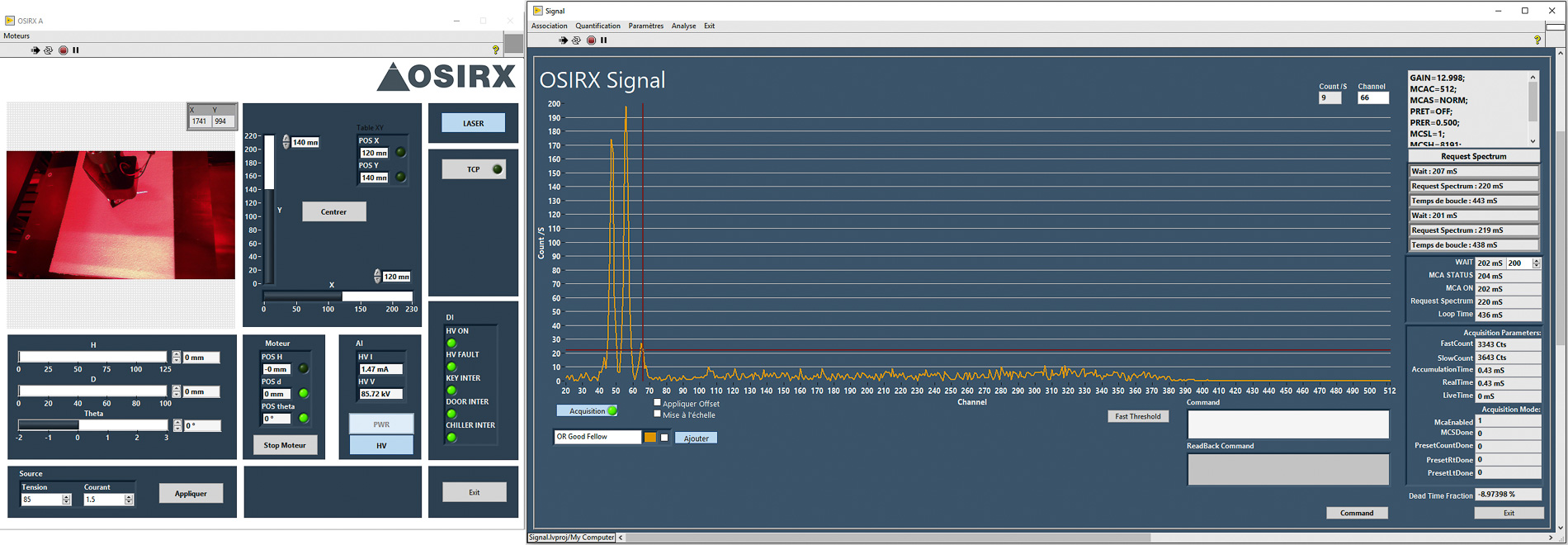

OSIRX LabVIEW control and measurement interface — Control and data acquisition

Measurement results

OSIRX measurement results.

Examples of results: pulsed and fluorescence-mode acquisitions, component detection and spectral renderings.

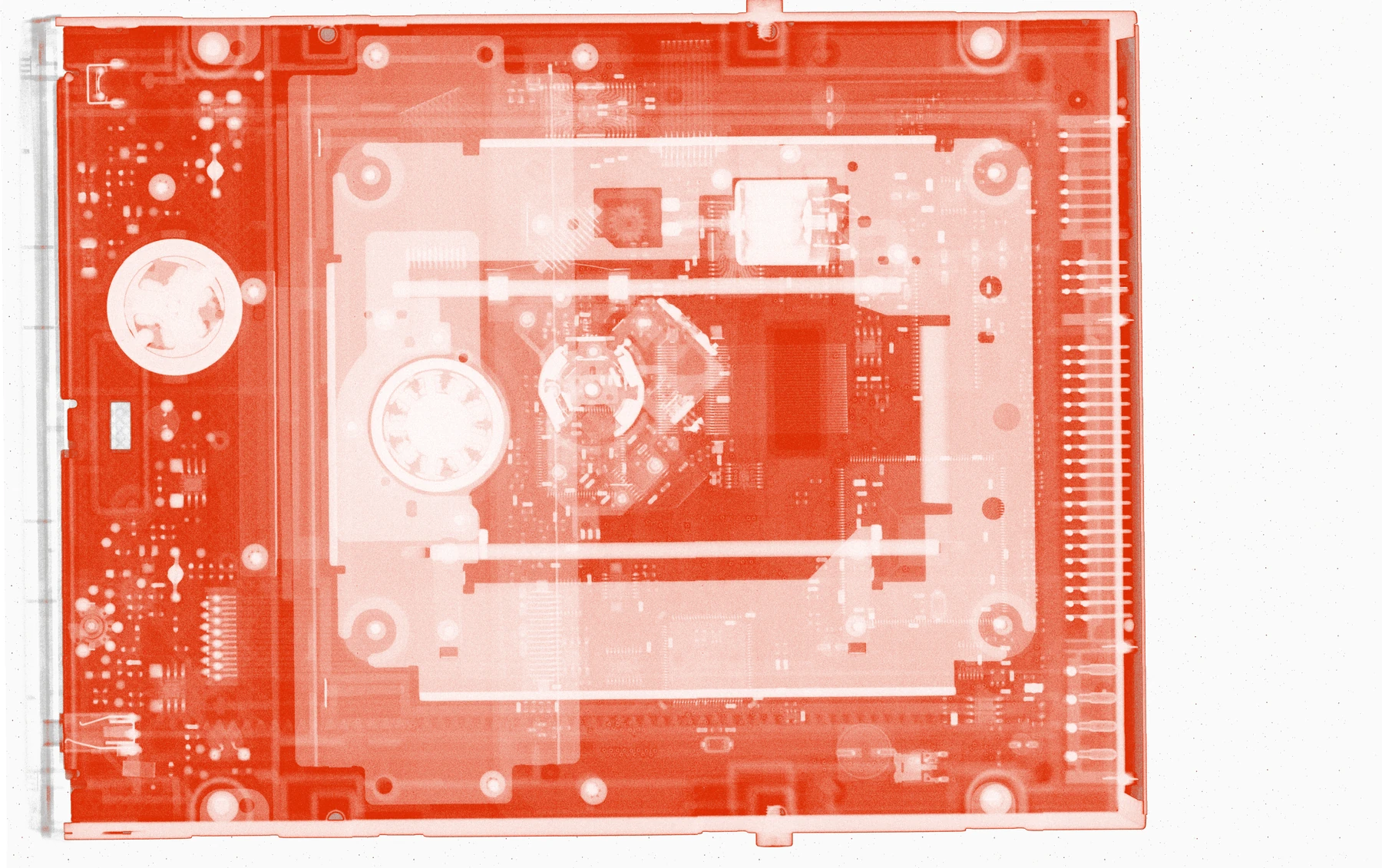

Red radiographic acquisition showing the internal parts of an electronic device — **Pulsed radiographic acquisition**87 keV · 10 mA · 100 ms

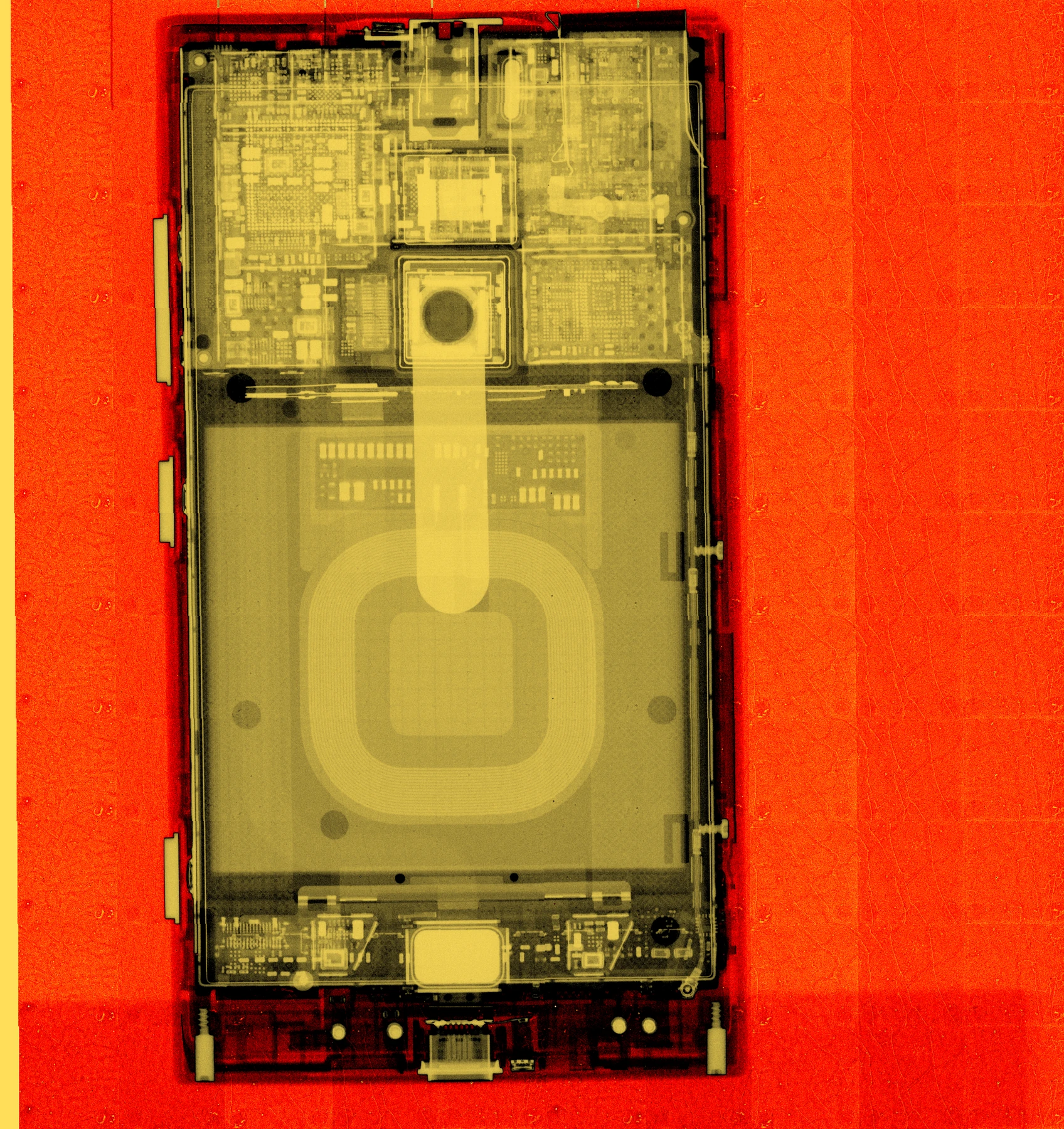

False-color acquisition showing the internal circuits of an electronic device — **Fluorescence-mode acquisition**70 keV · 1 mA · 1,500 ms

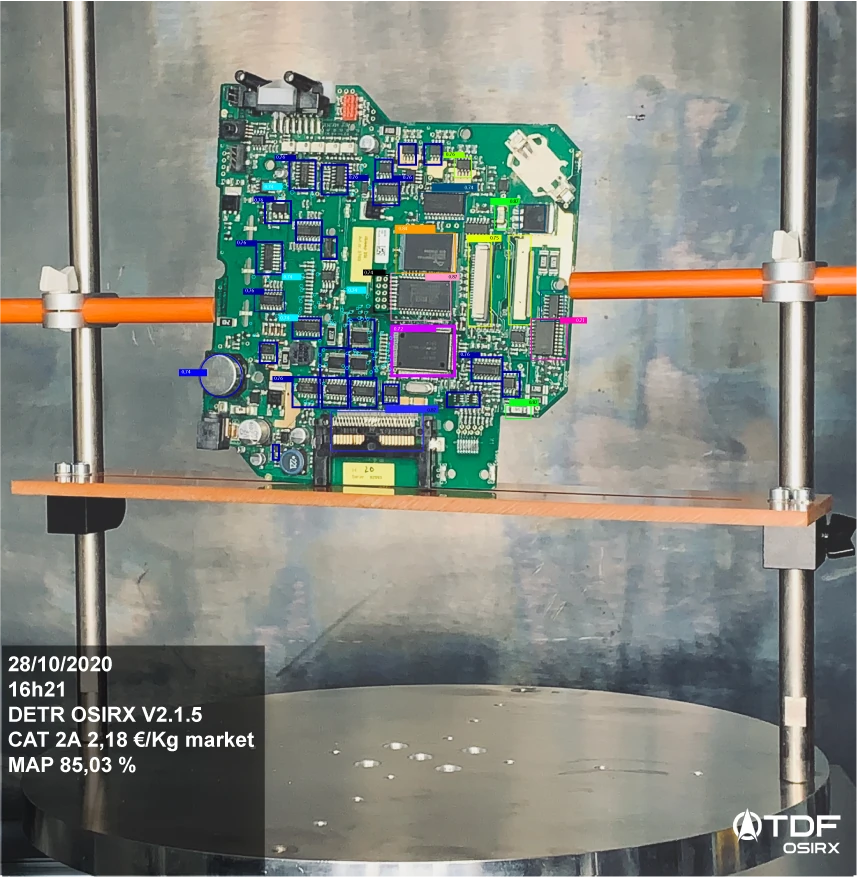

Circuit board photograph with identified components — **Circuit board: detection**Component identification

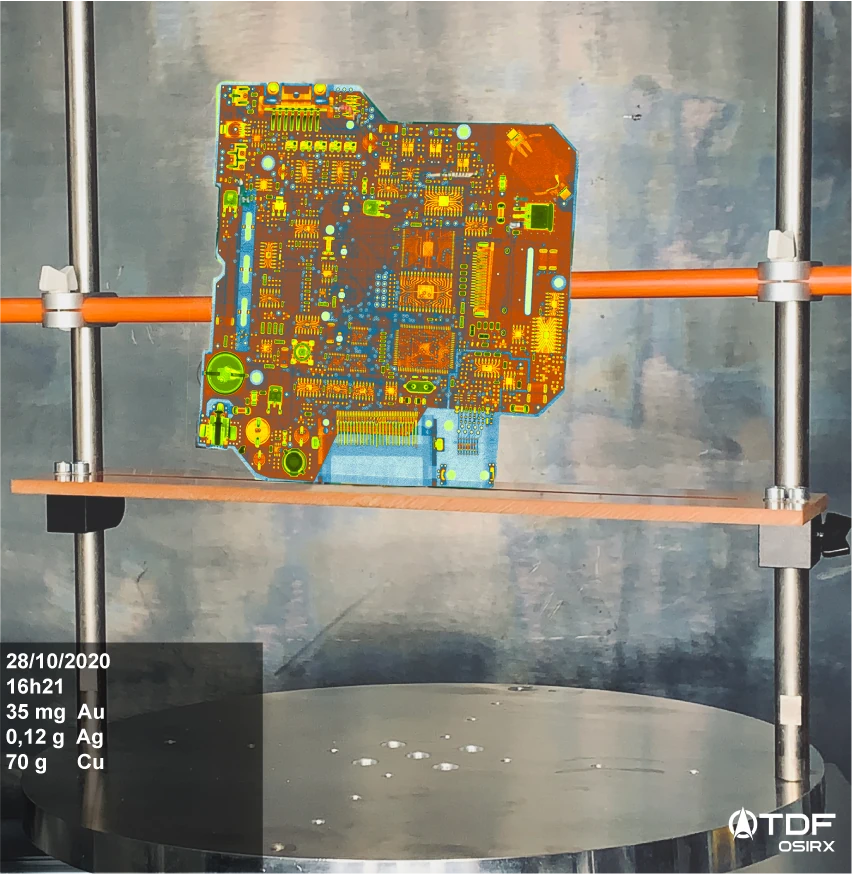

Color spectral rendering of the circuit board — **Circuit board: spectral rendering**Another view of the same board

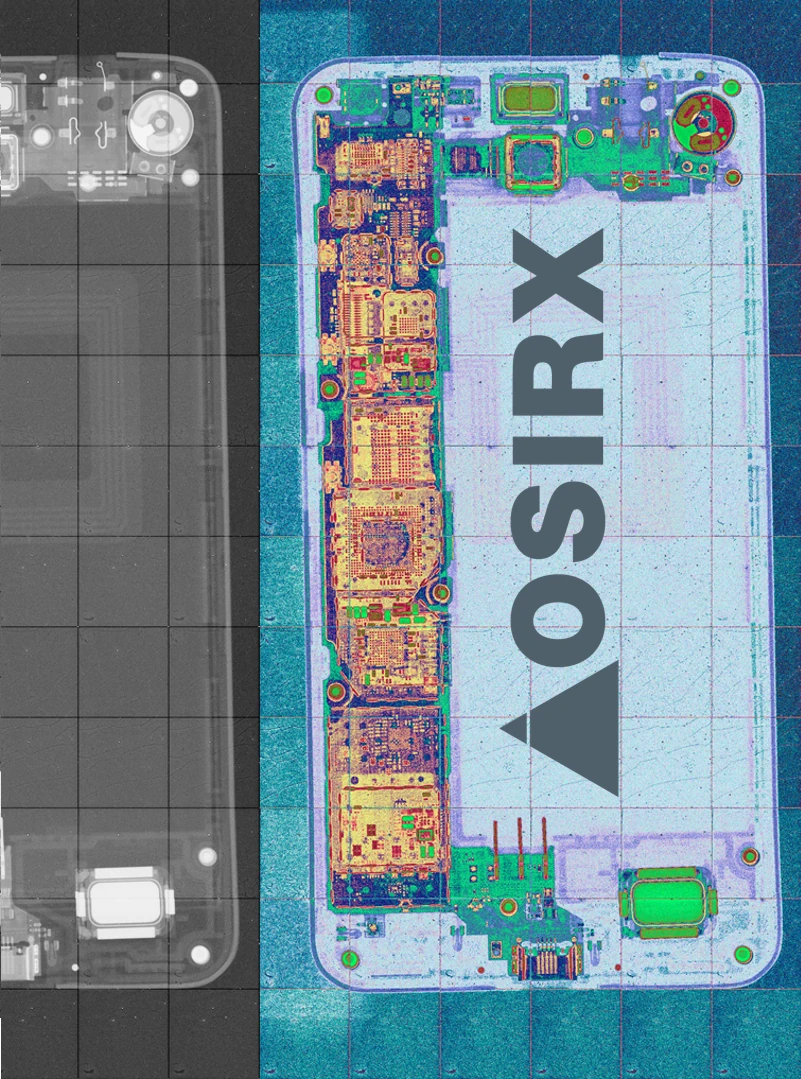

Grayscale and false-color renderings of an electronic device — **Grayscale and false color**Two renderings of one acquisition
