Ungroup ROIs
Description
Separates an ROI descriptor describing many contours into an array of ROI descriptors. Each of the ROI descriptors returned contains a single contour. Type : polymorphic.
Documentation illustration (illustration unavailable in the archive).
Input parameters
Documentation illustration (illustration unavailable in the archive). ROI Descriptor : cluster, descriptor that contains multiple contours.
Documentation illustration (illustration unavailable in the archive). Global Rectangle : array, minimum rectangle required to contain all of the contours in the ROI. Rectangles are specified by their bounding rectangle, with the format (Left/Top/Right/Bottom).
Documentation illustration (illustration unavailable in the archive). Contours : array, are each of the individual shapes that define an ROI.
Documentation illustration (illustration unavailable in the archive). ID : enum, refers to whether the contour is the external or internal edge of an ROI.
Documentation illustration (illustration unavailable in the archive). Type : integer, is the shape type of the contour.
Documentation illustration (illustration unavailable in the archive). Coordinates : array, indicates the relative position of the contour.
Documentation illustration (illustration unavailable in the archive).
Output parameters

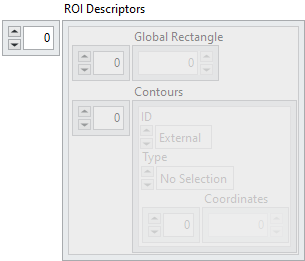

Documentation illustration (illustration unavailable in the archive). ROI Descriptors : array, returned array of ROI descriptors. Each ROI descriptor contains a single contour.
Documentation illustration (illustration unavailable in the archive). Global Rectangle : array, contains the coordinates of the bounding rectangle. Rectangles are specified by their bounding rectangle, with the format (Left/Top/Right/Bottom).
Documentation illustration (illustration unavailable in the archive). Contours : array, are each of the individual shapes that define an ROI.
Documentation illustration (illustration unavailable in the archive). ID : enum, refers to whether the contour is the external or internal edge of an ROI.
Documentation illustration (illustration unavailable in the archive). Type : integer, is the shape type of the contour.
Documentation illustration (illustration unavailable in the archive). Coordinates : array, indicates the relative position of the contour.
Documentation illustration (illustration unavailable in the archive).
Examples
All these examples are snippets PNG, you can drop these Snippet onto the block diagram and get the depicted code added to your VI (Do not forget to install Computer Vision library to run it).
