Tiles

Public technical reference documentation from Graiphic. For current SOTA installation and toolkit guides, visit the documentation center.

Description

Slices an image into specified dimensions and optionally resizes tiles to the original image size. Type : polymorphic.

Documentation illustration (illustration unavailable in the archive).

Input parameters

Documentation illustration (illustration unavailable in the archive). Image Src : class

Documentation illustration (illustration unavailable in the archive). Tiles Parameters : cluster,

Documentation illustration (illustration unavailable in the archive). rows : integer, number of tiles per column.
Documentation illustration (illustration unavailable in the archive). cols : integer, number of tiles per row.

Documentation illustration (illustration unavailable in the archive).

Documentation illustration (illustration unavailable in the archive). Keep Original Size ? : boolean, if true, we resize the tiles to the size of the source image.

Output parameters

Documentation illustration (illustration unavailable in the archive). Dup Image Src : class
Documentation illustration (illustration unavailable in the archive). Tiles : array, reference array containing the tiles.

Examples

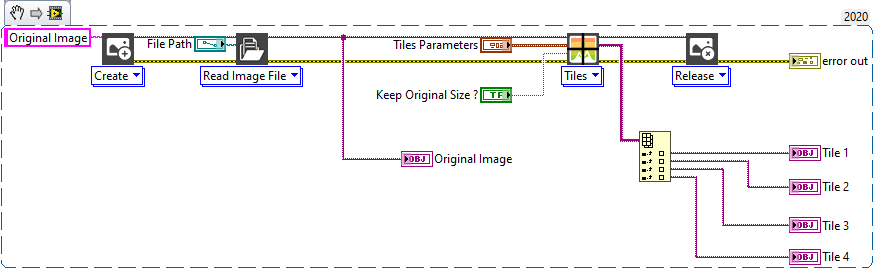

All these examples are snippets PNG, you can drop these Snippet onto the block diagram and get the depicted code added to your VI (Do not forget to install Computer Vision library to run it).

Documentation illustration (illustration unavailable in the archive).
