Perspective Transform

Public technical reference documentation from Graiphic. For current SOTA installation and toolkit guides, visit the documentation center.

Description

Calculates a perspective transform from four pairs of the corresponding points. Type : polymorphic.

Documentation illustration (illustration unavailable in the archive).

Input parameters

Documentation illustration (illustration unavailable in the archive). Image Src : class, type accepted U8, I16, RGB and HSL.

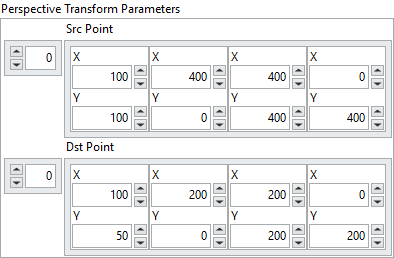

Documentation illustration (illustration unavailable in the archive). PerspectiveTransform Parameters : cluster,

Documentation illustration (illustration unavailable in the archive). Src Point : array, coordinates of quadrangle vertices in the source image.
Documentation illustration (illustration unavailable in the archive). Dst Point : array, coordinates of the corresponding quadrangle vertices in the destination image.

Documentation illustration (illustration unavailable in the archive).

Output parameters

Documentation illustration (illustration unavailable in the archive). Image Dst : class

Examples

All these examples are snippets PNG, you can drop these Snippet onto the block diagram and get the depicted code added to your VI (Do not forget to install Computer Vision library to run it).
