Substract

Public technical reference documentation from Graiphic. For current SOTA installation and toolkit guides, visit the documentation center.

Description

Computes the difference of the inputs. Type : polymorphic.

Warning : A new tensor is created for the output if you substract two arrays together.

Documentation illustration (illustration unavailable in the archive).

Input parameters

Documentation illustration (illustration unavailable in the archive). x : class, n-dimensional tensor (can be a scalar).
Documentation illustration (illustration unavailable in the archive). y : float, scalar (can be a tensor).

Output parameters

Documentation illustration (illustration unavailable in the archive). x – y : class, the difference between x and y.

Examples

All these examples are snippets PNG, you can drop these Snippet onto the block diagram and get the depicted code added to your VI (Do not forget to install Accelerator library to run it).

Substract tensor with a scalar

Documentation illustration (illustration unavailable in the archive).

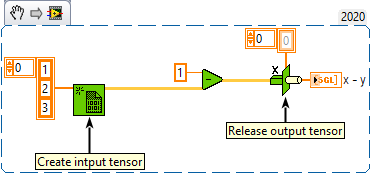

Substract scalar with a tensor

Documentation illustration (illustration unavailable in the archive).

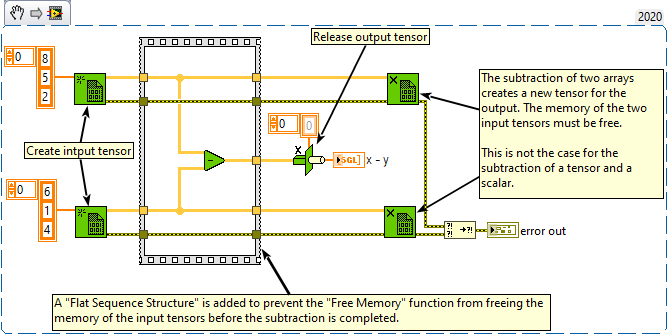

Substract a tensor to another tensor

Documentation illustration (illustration unavailable in the archive).
