Add

Add

Description

Computes the sum of the inputs. Type : polymorphic.

Warning : A new tensor is created for the output if you add two arrays together.



Documentation illustration (illustration unavailable in the archive).

Input parameters



Documentation illustration (illustration unavailable in the archive). x : class, n-dimensional tensor (can be a scalar).
Documentation illustration (illustration unavailable in the archive). y : float, scalar (can be a tensor).

Output parameters



Documentation illustration (illustration unavailable in the archive). x + y : class, the sum of x and y.

Examples

All these examples are snippets PNG, you can drop these Snippet onto the block diagram and get the depicted code added to your VI (Do not forget to install Accelerator library to run it).

Add tensor with a scalar

Documentation illustration (illustration unavailable in the archive).

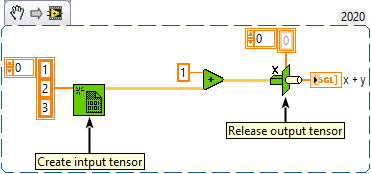

Add scalar with a tensor

Documentation illustration (illustration unavailable in the archive).

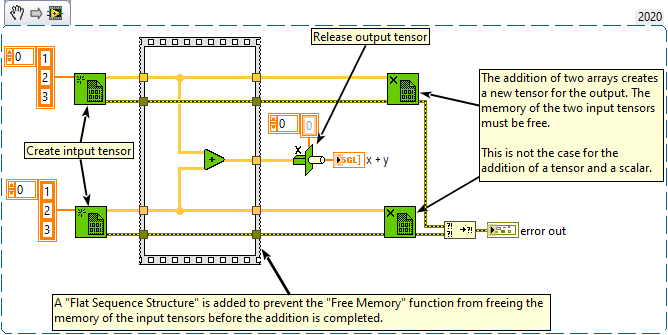

Add a tensor to another tensor

Documentation illustration (illustration unavailable in the archive).
