Normalize

Public technical reference documentation from Graiphic. For current SOTA installation and toolkit guides, visit the documentation center.

Description

Normalizes the norm or value range of an array. Type : polymorphic.

Documentation illustration (illustration unavailable in the archive).

Input parameters

Documentation illustration (illustration unavailable in the archive). Image Src : class, type accepted U8, I16, RGB and HSL.

Documentation illustration (illustration unavailable in the archive). Normalize Parameters : cluster,

Documentation illustration (illustration unavailable in the archive). Alpha : float, norm value to normalize to or the lower range boundary in case of the range normalization.
Documentation illustration (illustration unavailable in the archive). Beta : float, upper range boundary in case of the range normalization; it is not used for the norm normalization.
Documentation illustration (illustration unavailable in the archive). Norm Type : integer, normalization type.

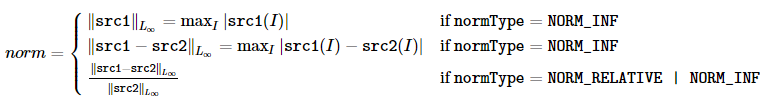

NORM_INF	Documentation illustration (illustration unavailable in the archive).

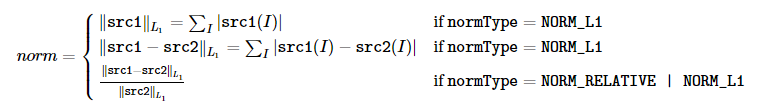

NORM_L1	Documentation illustration (illustration unavailable in the archive).
NORM_L2	Documentation illustration (illustration unavailable in the archive).
NORM_MINMAX	flag

Documentation illustration (illustration unavailable in the archive).

Output parameters

Documentation illustration (illustration unavailable in the archive). Image Dst : class

Examples

All these examples are snippets PNG, you can drop these Snippet onto the block diagram and get the depicted code added to your VI (Do not forget to install Computer Vision library to run it).
