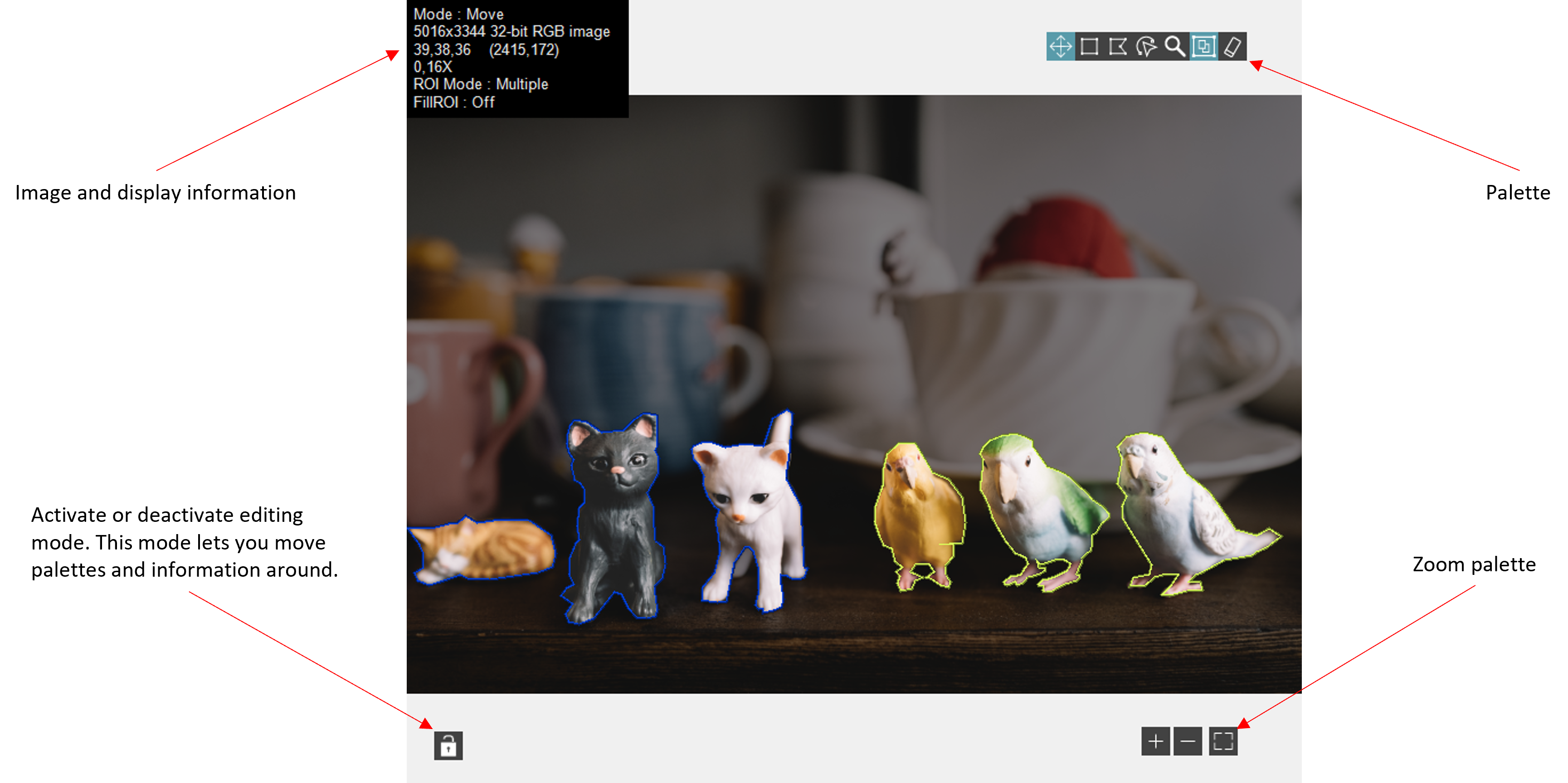

CV Display

Documentation illustration (illustration unavailable in the archive).

Shortcut Menu

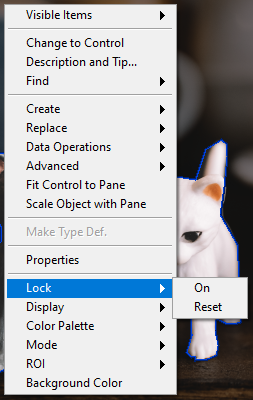

Lock : mode for modifying the CV display interface.

    • On/Off : locks or unlocks pallets (grayed out if no pallet visible).
    • Reset : reset the CV display interface.

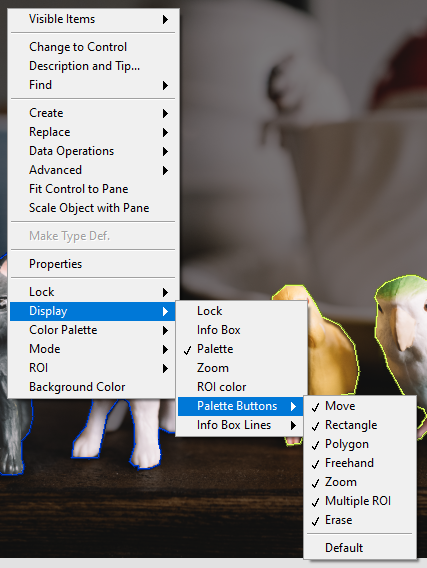

Display : toggle the visibility of buttons and widgets within the CV display interface.

    • Lock : toggle the visibility of buttons lock.
    • Info Box : toggle the visibility of box information.
    • Palette : toggle the visibility of palette.
    • Zoom : toggle the visibility of zoom palette.
    • ROI color : toggle the visibility of ROI color boxes.
    • Palette Buttons : toggle the visibility of palette buttons.
        • Move : move ROIs
        • Rectangle : draw rectangle
        • Polygon : draw polygon
        • Freehand : draw freehand region
        • Zoom : zoom in and out
        • Multiple ROI : allows you to draw multiple ROI
        • Erase : deletes all ROIs
        • Default : makes all pallet buttons visible
    • Info Box Lines : toggle the visibility of info box lines.
        • Palette Mode : indicates the mode selected on the palette
        • Image Info : indicates some information about the image, such as its size, depth and the model used
        • Mouse Info : RGB value of the pixel where the mouse is positioned and its position
        • Zoom : zoom factor
        • ROI Mode : display mode
        • FilI ROI : display fill mode
        • Default : makes all info line visible

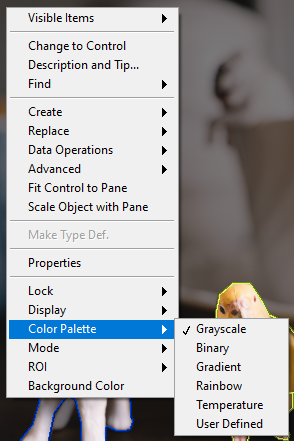

Color Palette : changes color palette for grayscale image.

    • Grayscale : Gradual grayscale variation from black to white.
    • Binary : 16 cycles of 16 different colors, where g is the grayscale value and g = 0 corresponds to R = 0, G = 0, B = 0 (black); g = 1 corresponds to R = 255, G = 0, B = 0 (red); g = 2 corresponds to R = 0, G = 255, B = 0 (green); and so on.
    • Gradient : Gradation from red to white with a prominent range of light blue in the upper range. 0 is black and 255 is white.
    • Rainbow : Gradation from blue to red with a prominent range of greens in the middle value range. 0 is black and 255 is white.
    • Temperature : Gradation from light brown to dark brown. 0 is black and 255 is white.
    • User Defined : User Palette defined with Display Property Node.

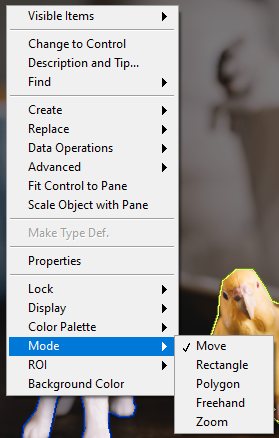

Mode : changes display mode.

    • Move : move ROIs
    • Rectangle : draw rectangle
    • Polygon : draw polygon
    • Freehand : draw freehand region
    • Zoom : zoom in and out

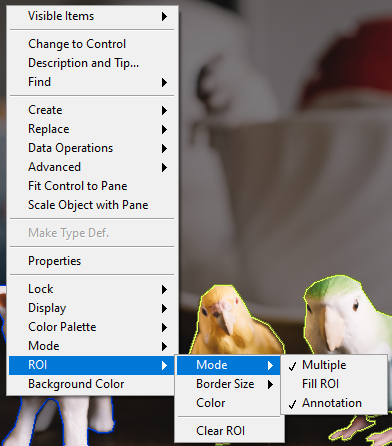

ROI : toggle the visibility of buttons and widgets within the CV display interface.

    • Mode :
      • Multiple : selects whether you want to display one or mode ROIs.
      • Fill ROI : define whether the CV diplay should fill the ROI.
      • Annotation : define whether the CV diplay should display the Annotation Editor Windows
    • Border Size : ROI border size.
      • Thin
      • Medium
      • Thick
    • Color : defines the current color of the ROI drawing.
    • Clear ROI : deletes all ROIs.

Background Color : changes the background color of the CV display.
Documentation illustration (illustration unavailable in the archive).Documentation illustration (illustration unavailable in the archive).Documentation illustration (illustration unavailable in the archive).Documentation illustration (illustration unavailable in the archive).Documentation illustration (illustration unavailable in the archive).

Methods

Add Or Update Class : removes all ROIs from the image.

Documentation illustration (illustration unavailable in the archive). Class : cluster,

Documentation illustration (illustration unavailable in the archive). ClassName : string, class name.
Documentation illustration (illustration unavailable in the archive). Color : integer, color value.


Documentation illustration (illustration unavailable in the archive).Clear ROI : removes all ROIs from the image.


Documentation illustration (illustration unavailable in the archive).Display All Class Name : displays a class assigned to ROIs on the CV display.

Documentation illustration (illustration unavailable in the archive). Display ? : boolean, if true, the class defined by “Class Name” is displayed on the CV display.
Documentation illustration (illustration unavailable in the archive). Class Name : string, class name.

      • If Class Name == “” ⇒ displays all classes assigned to ROIs.
      • If Class Name == “my_class_name” ⇒ displays only the class whose name is “my_class_name”.


Documentation illustration (illustration unavailable in the archive).Display One Index : displays one ROI on the CV display.

Documentation illustration (illustration unavailable in the archive). Display ? : boolean, if true, the ROI defined by “Index” is displayed on the CV display.
Documentation illustration (illustration unavailable in the archive). Index : integer, index of ROI.

      • If Index == -1 ⇒ displays nothing.
      • If Index == [0-n] ⇒ displays ROI.


Documentation illustration (illustration unavailable in the archive).Remove Class : remove a class from the list of classes and delete all ROIs of this class.

Documentation illustration (illustration unavailable in the archive). ClassName : string, class name.


Documentation illustration (illustration unavailable in the archive).Reset : reset the CV display interface.

    • Display only palette (with full buttons)
    • Move the palette to the middle left (Vertical)
    • Move the zoom palette to the middle right (Vertical)
    • Move the label to the upper middle


Documentation illustration (illustration unavailable in the archive).Set Auto Zoom : sets the display auto zoom mode, every time an image is displayed the zoom adapt to the size of the image.


Documentation illustration (illustration unavailable in the archive).Zoom:Zoom in : zooms in by centering the image on the coordinates defined by Zoom Center.

Documentation illustration (illustration unavailable in the archive). Zoom Center : cluster, zoom-in position.

Documentation illustration (illustration unavailable in the archive). X : integer, X coordinate.
Documentation illustration (illustration unavailable in the archive). Y : integer, Y coordinate.

Note : if Zoom Center.X < 0 or Zoom Center.Y <0, zooming will be to the center.


Documentation illustration (illustration unavailable in the archive).Zoom:Zoom out : zooms out by centering the image on the coordinates defined by Zoom Center.

Documentation illustration (illustration unavailable in the archive). Zoom Center : cluster, zoom-out position.

Documentation illustration (illustration unavailable in the archive). X : integer, X coordinate.
Documentation illustration (illustration unavailable in the archive). Y : integer, Y coordinate.

Note : if Zoom Center.X < 0 or Zoom Center.Y <0, zooming will be to the center.

Documentation illustration (illustration unavailable in the archive).

Properties

Documentation illustration (illustration unavailable in the archive).Documentation illustration (illustration unavailable in the archive). Backgroung Color : cluster, changes the background color of the CV display (permissions : read/write).
Documentation illustration (illustration unavailable in the archive). Class[] : array, get or set classes. (permissions : read/write).

Documentation illustration (illustration unavailable in the archive). ClassName : string, class name.
Documentation illustration (illustration unavailable in the archive). Color : integer, color value.

Documentation illustration (illustration unavailable in the archive).Documentation illustration (illustration unavailable in the archive). Class[] (Sgnl) : array, set classes and generate “Class Added” event. (permissions : write only).

Documentation illustration (illustration unavailable in the archive). ClassName : string, class name.
Documentation illustration (illustration unavailable in the archive). Color : integer, color value.

Documentation illustration (illustration unavailable in the archive).Documentation illustration (illustration unavailable in the archive). Color Palette Type : enum, color palette selection (permissions : read/write).

    • Grayscale : Gradual grayscale variation from black to white.
    • Binary : 16 cycles of 16 different colors, where g is the grayscale value and g = 0 corresponds to R = 0, G = 0, B = 0 (black); g = 1 corresponds to R = 255, G = 0, B = 0 (red); g = 2 corresponds to R = 0, G = 255, B = 0 (green); and so on.
    • Gradient : Gradation from red to white with a prominent range of light blue in the upper range. 0 is black and 255 is white.
    • Rainbow : Gradation from blue to red with a prominent range of greens in the middle value range. 0 is black and 255 is white.
    • Temperature : Gradation from light brown to dark brown. 0 is black and 255 is white.
    • User Defined : User Palette defined with User Color Palette Property.

Documentation illustration (illustration unavailable in the archive). Color:Value : integer, color used to draw news ROIs (permissions : read/write).
Documentation illustration (illustration unavailable in the archive). Color:Visible : boolean, indicates whether the color box is visible (permissions : read/write).
Documentation illustration (illustration unavailable in the archive). Info Box:Position : cluster, position of the top left corner of the label (permissions : read/write).

Documentation illustration (illustration unavailable in the archive). X : integer, X coordinate.
Documentation illustration (illustration unavailable in the archive). Y : integer, Y coordinate.

Documentation illustration (illustration unavailable in the archive).Documentation illustration (illustration unavailable in the archive). Info Box:Text Visible : cluster, text written in the label (permissions : read/write).

Documentation illustration (illustration unavailable in the archive). Palette Mode : boolean, indicates the mode selected on the palette.
Documentation illustration (illustration unavailable in the archive). Image Info : boolean, indicates some information about the image, such as its size, depth and the model used.
Documentation illustration (illustration unavailable in the archive). Mouse Info : boolean, RGB value of the pixel where the mouse is positioned and its position.
Documentation illustration (illustration unavailable in the archive). Zoom : boolean, zoom factor.
Documentation illustration (illustration unavailable in the archive). Roi Mode : boolean, display mode.
Documentation illustration (illustration unavailable in the archive). Fill Roi : boolean, display fill mode.

Documentation illustration (illustration unavailable in the archive).Documentation illustration (illustration unavailable in the archive). Info Box:Value : cluster, text written in the label (permissions : read only).

Documentation illustration (illustration unavailable in the archive). Mode : string, indicates the mode selected on the palette.
Documentation illustration (illustration unavailable in the archive). Image Info : string, indicates some information about the image, such as its size, depth and the model used.
Documentation illustration (illustration unavailable in the archive). Mouse : string, RGB value of the pixel where the mouse is positioned and its position.
Documentation illustration (illustration unavailable in the archive). Zoom : string, zoom factor.
Documentation illustration (illustration unavailable in the archive). Roi Mode : string, display mode.
Documentation illustration (illustration unavailable in the archive). Fill Roi : string, display fill mode.

Documentation illustration (illustration unavailable in the archive).Documentation illustration (illustration unavailable in the archive). Lock:Value : boolean, if true, you can modify the CV interface (permissions : read/write).
Documentation illustration (illustration unavailable in the archive). Lock:Visible : boolean, indicates whether the lock button is visible (permissions : read/write).
Documentation illustration (illustration unavailable in the archive). Mouse Position:Down : cluster, last mouse down position (in pixels in the image coordinate system)  (permissions : read only).

Documentation illustration (illustration unavailable in the archive). X : integer, X coordinate.
Documentation illustration (illustration unavailable in the archive). Y : integer, Y coordinate.


Documentation illustration (illustration unavailable in the archive). Mouse Position:Move : cluster, last mouse move position (in pixels in the image coordinate system)  (permissions : read only).

Documentation illustration (illustration unavailable in the archive). X : integer, X coordinate.
Documentation illustration (illustration unavailable in the archive). Y : integer, Y coordinate.


Documentation illustration (illustration unavailable in the archive). Mouse Position:Up : cluster, last mouse up position (in pixels in the image coordinate system)  (permissions : read only).

Documentation illustration (illustration unavailable in the archive). X : integer, X coordinate.
Documentation illustration (illustration unavailable in the archive). Y : integer, Y coordinate.


Documentation illustration (illustration unavailable in the archive).Documentation illustration (illustration unavailable in the archive).Documentation illustration (illustration unavailable in the archive).Documentation illustration (illustration unavailable in the archive). Palette Mode : enum, mode selection (permissions : read/write).

    • Move : move ROIs
    • Rectangle : draw rectangle
    • Polygon : draw polygon
    • Freehand Region : draw freehand region
    • Zoom : zoom in and out


Documentation illustration (illustration unavailable in the archive). Palette:ButtonsVisible : cluster, indicates whether the palette buttons are visible (permissions : read/write).

Documentation illustration (illustration unavailable in the archive). Erase : boolean, indicates whether the button is visible.
Documentation illustration (illustration unavailable in the archive). MultiROI : boolean, indicates whether the button is visible.
Documentation illustration (illustration unavailable in the archive). Zoom : boolean, indicates whether the button is visible.
Documentation illustration (illustration unavailable in the archive). Freehand : boolean, indicates whether the button is visible.
Documentation illustration (illustration unavailable in the archive). Polygone : boolean, indicates whether the button is visible.
Documentation illustration (illustration unavailable in the archive). Rectangle : boolean, indicates whether the button is visible.
Documentation illustration (illustration unavailable in the archive). Move : boolean, indicates whether the button is visible.

Documentation illustration (illustration unavailable in the archive).Documentation illustration (illustration unavailable in the archive). Palette:Direction : enum, decides whether the palette is in vertical or horizontal direction (permissions : read/write).
Documentation illustration (illustration unavailable in the archive). Palette:Position : cluster, position of the top left corner of the palette (permissions : read/write).

Documentation illustration (illustration unavailable in the archive). X : integer, X coordinate.
Documentation illustration (illustration unavailable in the archive). Y : integer, Y coordinate.


Documentation illustration (illustration unavailable in the archive).Documentation illustration (illustration unavailable in the archive). Palette:Visible : boolean, indicates whether the palette is visible (permissions : read/write).
Documentation illustration (illustration unavailable in the archive). ROI:Border Size : enum, ROI border size selection (permissions : read/write).
Documentation illustration (illustration unavailable in the archive). ROI:Mode:Annotation : boolean, define whether the CV diplay should display the Annotation Editor Windows (permissions : read/write).
Documentation illustration (illustration unavailable in the archive). ROI:Mode:Fill : boolean, define whether the CV diplay should fill the ROI (permissions : read/write).
Documentation illustration (illustration unavailable in the archive). ROI:Mode:Multiple : enum, selects whether you want to display one or more ROIs (permissions : read/write).
Documentation illustration (illustration unavailable in the archive). ROI:Value : cluster, get or set ROIs shown on display (permissions : read/write).

Documentation illustration (illustration unavailable in the archive). Global Rectangle : array, minimum rectangle required to contain all of the contours in the ROI. Rectangles are specified by their bounding rectangle, with the format (Left/Top/Right/Bottom)
Documentation illustration (illustration unavailable in the archive). Contours : array, are each of the individual shapes that define the ROI

Documentation illustration (illustration unavailable in the archive). Class Name : string, class name.
Documentation illustration (illustration unavailable in the archive). Type : integer, is the shape type of the contour.
Documentation illustration (illustration unavailable in the archive). Coordinates : array, are the coordinates that define the contour.
Documentation illustration (illustration unavailable in the archive). Color : integer, class color.


Documentation illustration (illustration unavailable in the archive).Documentation illustration (illustration unavailable in the archive). ROI:Value : cluster, set ROIs shown on display and generate ROIs event (permissions : write only).

Documentation illustration (illustration unavailable in the archive). Global Rectangle : array, minimum rectangle required to contain all of the contours in the ROI. Rectangles are specified by their bounding rectangle, with the format (Left/Top/Right/Bottom)
Documentation illustration (illustration unavailable in the archive). Contours : array, are each of the individual shapes that define the ROI

Documentation illustration (illustration unavailable in the archive). Class Name : string, class name.
Documentation illustration (illustration unavailable in the archive). Type : integer, is the shape type of the contour.
Documentation illustration (illustration unavailable in the archive). Coordinates : array, are the coordinates that define the contour.
Documentation illustration (illustration unavailable in the archive). Color : integer, class color.


Documentation illustration (illustration unavailable in the archive).Documentation illustration (illustration unavailable in the archive). User Color Palette : array, color palette used to apply color mapping to the image :

Documentation illustration (illustration unavailable in the archive). Red : unsigned integer, value of the red color plane.
Documentation illustration (illustration unavailable in the archive). Green: unsigned integer, value of the green color plane.
Documentation illustration (illustration unavailable in the archive). Blue: unsigned integer, value of the bluecolor plane.

Documentation illustration (illustration unavailable in the archive).Documentation illustration (illustration unavailable in the archive). User Event (Annotation):Class Added : refnum, user event linked to annotation class added (permissions : read only).
Documentation illustration (illustration unavailable in the archive). User Event (Annotation):Class Updated: refnum, user event linked to annotation class updated (permissions : read only).
Documentation illustration (illustration unavailable in the archive). User Event (Value Changed):Color : refnum, user event linked to color value changed (permissions : read only).
Documentation illustration (illustration unavailable in the archive). User Event (Value Changed):Info Box Position : refnum, user event linked to label position value changed (permissions : read only).
Documentation illustration (illustration unavailable in the archive). User Event (Value Changed):Lock : refnum, user event linked to lock value changed (permissions : read only).
Documentation illustration (illustration unavailable in the archive). User Event (Value Changed):Lock Visible : refnum, user event linked to lock visible value changed (permissions : read only).
Documentation illustration (illustration unavailable in the archive). User Event (Value Changed):Mouse Down : refnum, user event linked to mouse down value changed (permissions : read only).
Documentation illustration (illustration unavailable in the archive). User Event (Value Changed):Mouse Move : refnum, user event linked to mouse move value changed (permissions : read only).
Documentation illustration (illustration unavailable in the archive). User Event (Value Changed):Mouse Up : refnum, user event linked to mouse up value changed (permissions : read only).
Documentation illustration (illustration unavailable in the archive). User Event (Value Changed):Palette Direction : refnum, user event linked to palette direction value changed (permissions : read only).
Documentation illustration (illustration unavailable in the archive). User Event (Value Changed):Palette Mode : refnum, user event linked to palette mode value changed (permissions : read only).
Documentation illustration (illustration unavailable in the archive). User Event (Value Changed):Palette Position : refnum, user event linked to palette position value changed (permissions : read only).
Documentation illustration (illustration unavailable in the archive). User Event (Value Changed):ROIs : refnum, user event linked to palette position value changed (permissions : read only).
Documentation illustration (illustration unavailable in the archive). User Event (Value Changed):Zoom Direction : refnum, user event linked to ROIs value changed (permissions : read only).
Documentation illustration (illustration unavailable in the archive). User Event (Value Changed):Zoom Position : refnum, user event linked to zoom position value changed (permissions : read only).
Documentation illustration (illustration unavailable in the archive). Zoom:Direction : enum, decides whether the zoom palette is in vertical or horizontal direction (permissions : read/write).
Documentation illustration (illustration unavailable in the archive). Zoom:Position : cluster, position of the top left corner of the zoom palette (permissions : read/write).

Documentation illustration (illustration unavailable in the archive). X : integer, X coordinate.
Documentation illustration (illustration unavailable in the archive). Y : integer, Y coordinate.


Documentation illustration (illustration unavailable in the archive).Documentation illustration (illustration unavailable in the archive). Zoom:Visible : boolean, indicates whether the zoom palette is visible (permissions : read/write).
