Transpose Array
Description
Rearranges the elements of n-dimensional array such that array becomes transposed array.
Warning : A new tensor is created for the output.
Documentation illustration (illustration unavailable in the archive).
Input parameters
Documentation illustration (illustration unavailable in the archive). array : class, n-dimentional tensor.
Documentation illustration (illustration unavailable in the archive). axis_order : array, order of the axes that define the transposition.
Output parameters
Documentation illustration (illustration unavailable in the archive). transposed array : class, the result.
Examples
All these examples are snippets PNG, you can drop these Snippet onto the block diagram and get the depicted code added to your VI (Do not forget to install Accelerator library to run it).

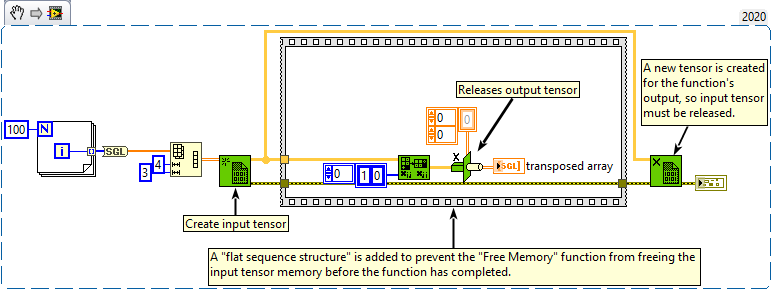

Transpose 2D Array
Documentation illustration (illustration unavailable in the archive).

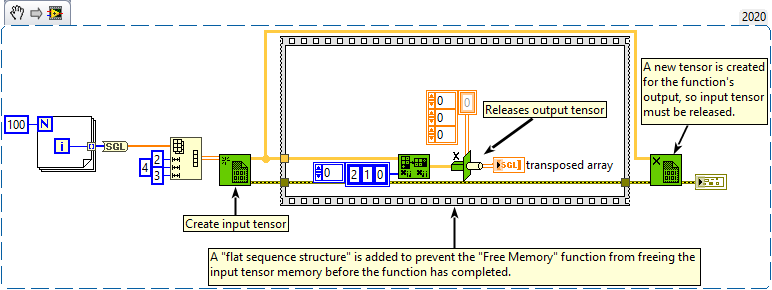

Transpose 3D Array
Documentation illustration (illustration unavailable in the archive).

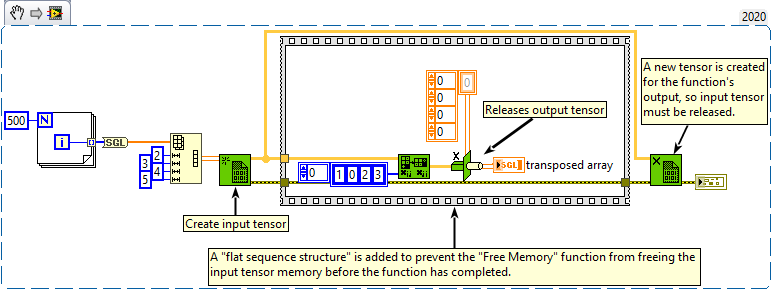

Transpose 4D Array
Documentation illustration (illustration unavailable in the archive).
