Array Resume

Public technical reference documentation from Graiphic. For current SOTA installation and toolkit guides, visit the documentation center.

Documentation illustration (illustration unavailable in the archive).Documentation illustration (illustration unavailable in the archive).

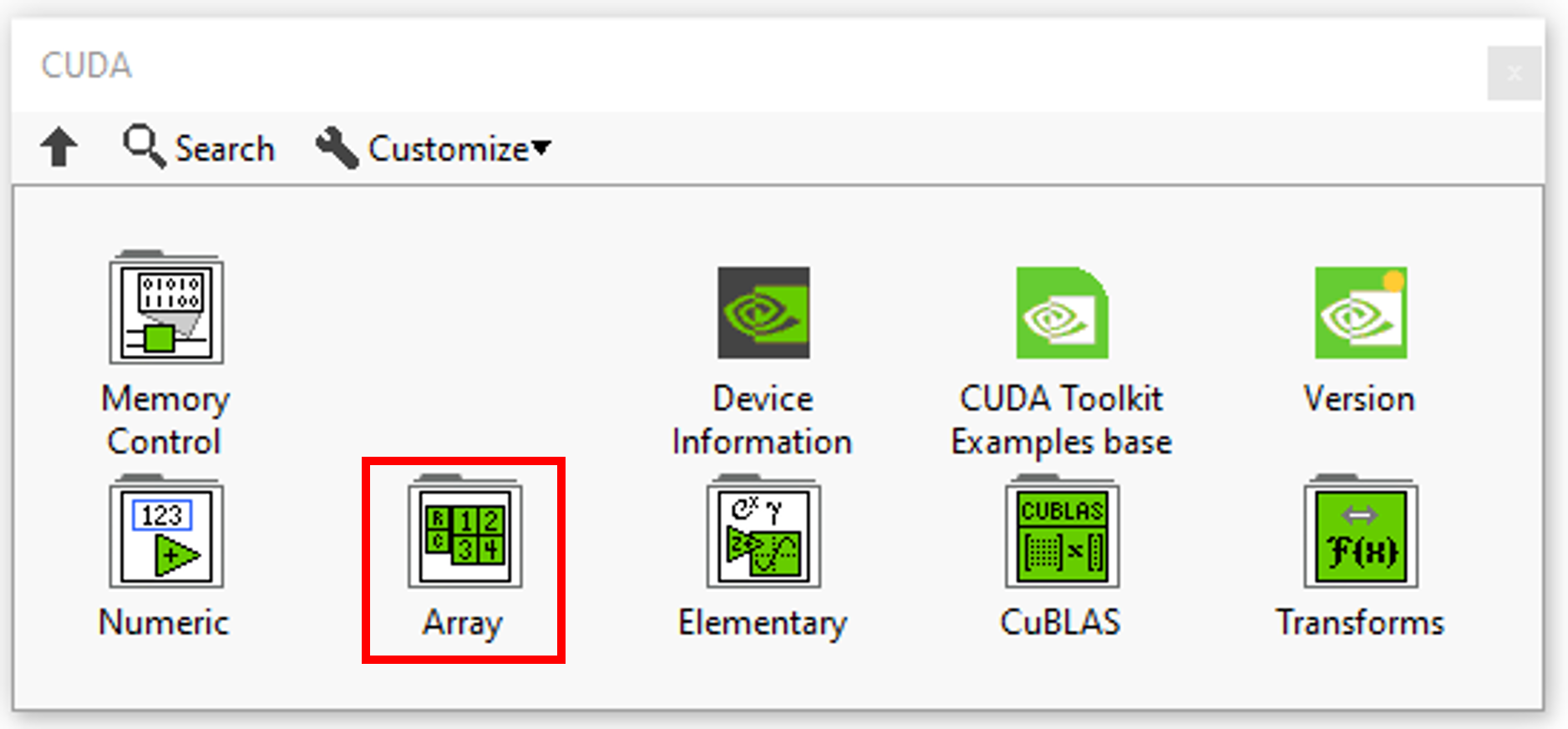

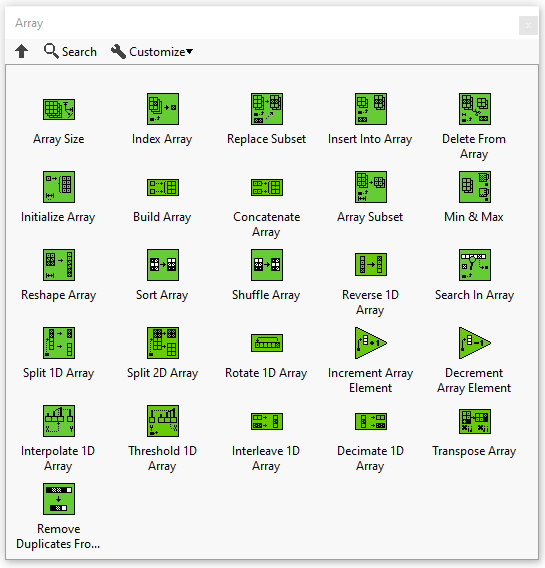

In this section you’ll find a list of all array fonctionalities.

	ICONS	DESCRIPTION
Array Size	Documentation illustration (illustration unavailable in the archive).	Returns the number of elements in each dimension of n-dimensional array.
Index Array	Documentation illustration (illustration unavailable in the archive).	Returns the element or subarray of n-dimensional array at index.
Replace Subset	Documentation illustration (illustration unavailable in the archive).	Replaces an element or subarray in a n-dimensional array at the point you specify in index.
Insert Into Array	Documentation illustration (illustration unavailable in the archive).	Inserts an subarray into n-dimensional array at the point you specify in index and axis.
Delete From Array	Documentation illustration (illustration unavailable in the archive).	Deletes an element or subarray from n-dimensional array of length elements starting at index.
Initialize Array	Documentation illustration (illustration unavailable in the archive).	Creates a n-dimensional tensor in which every element is initialized to the value of element.
Buid Array	Documentation illustration (illustration unavailable in the archive).	Build arrays to an n-dimensional array.
Concatenate Array	Documentation illustration (illustration unavailable in the archive).	Concatenate arrays to an n-dimensional array.
Array Subset	Documentation illustration (illustration unavailable in the archive).	Returns a portion of array starting at index and containing length elements.
Min & Max	Documentation illustration (illustration unavailable in the archive).	Returns the maximum and minimum values found in array, along with the indexes for each value.
Reshape Array	Documentation illustration (illustration unavailable in the archive).	Changes the dimensions of an array according to the values of dimension size 0..m-1.
Sort Array	Documentation illustration (illustration unavailable in the archive).	Rearranges array by sorting the elements in ascending order.
Shuffle Array	Documentation illustration (illustration unavailable in the archive).	Rearranges the elements of an array in a pseudorandom order.
Reverse 1D Array	Documentation illustration (illustration unavailable in the archive).	Reverses the order of the elements in array, where array is of any type.
Search In Array	Documentation illustration (illustration unavailable in the archive).	Searches for an element in an array starting at start index.
Split 1D Array	Documentation illustration (illustration unavailable in the archive).	Divides array at index and returns the two portions with the element of index at the beginning of second subarray.
Split 2D Array	Documentation illustration (illustration unavailable in the archive).	Divides array at index and returns the two portions with the element of index at the beginning of second subarray.
Rotate 1D Array	Documentation illustration (illustration unavailable in the archive).	Rotates the elements of array the number of places and in the direction indicated by n.
Increment Array Element	Documentation illustration (illustration unavailable in the archive).	Adds 1 to the specified elements of a n-dimentional array.
Decrement Array Element	Documentation illustration (illustration unavailable in the archive).	Subtracts 1 from the specified element of a n-dimentional array.
Interpolate 1D Array	Documentation illustration (illustration unavailable in the archive).	Linearly interpolates a decimal y value from an array of numbers or points using a fractional index or x value.
Threshold 1D Array	Documentation illustration (illustration unavailable in the archive).	Interpolates points in a one-dimentional array that represents a two-dimentional non-descending graph.
Interleave 1D Array	Documentation illustration (illustration unavailable in the archive).	Interleaves corresponding elements from the input arrays into a single output array.
Decimate 1D Array	Documentation illustration (illustration unavailable in the archive).	Divides the elements of array into the output arrays, placing elements into the outputs successively.
Transpose Array	Documentation illustration (illustration unavailable in the archive).	Rearranges the elements of n-dimensional array such that array becomes transposed array.
Remove Duplicates From 1D Array	Documentation illustration (illustration unavailable in the archive).	Removes duplicate elements from a one-dimentional array.
