Min & Max

Public technical reference documentation from Graiphic. For current SOTA installation and toolkit guides, visit the documentation center.

Description

Returns the maximum and minimum values found in array, along with the indexes for each value. Type : Polyporphic.

Documentation illustration (illustration unavailable in the archive).

Input parameters

Documentation illustration (illustration unavailable in the archive). array : class, n-dimensional tensor.

Output parameters

Documentation illustration (illustration unavailable in the archive). max value : float, is of the same data type and structure as the elements in array.
Documentation illustration (illustration unavailable in the archive). max index(es) : array, index for the first max value. If array is multidimensional, max index(es) is an array whose elements are the indexes for the first maximum value in array.
Documentation illustration (illustration unavailable in the archive). min value : float, is of the same data type and structure as the elements in array.
Documentation illustration (illustration unavailable in the archive). min index(es) : array, index for the first max value. If array is multidimensional, max index(es) is an array whose elements are the indexes for the first minimum value in array.

Examples

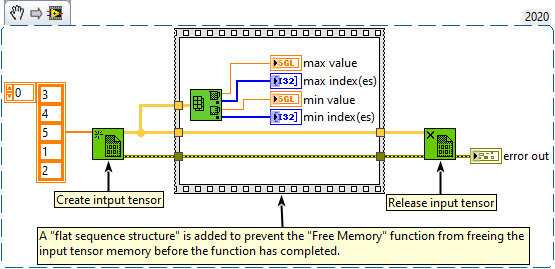

All these examples are snippets PNG, you can drop these Snippet onto the block diagram and get the depicted code added to your VI (Do not forget to install Accelerator library to run it).

Documentation illustration (illustration unavailable in the archive).
