Interleave 1D Array

Public technical reference documentation from Graiphic. For current SOTA installation and toolkit guides, visit the documentation center.

Description

Interleaves corresponding elements from the input arrays into a single output array.

Warning : A new tensor is created for the output.

Documentation illustration (illustration unavailable in the archive).

Input parameters

Documentation illustration (illustration unavailable in the archive). arrays : array, array of one-dimentional tensor.

Output parameters

Documentation illustration (illustration unavailable in the archive). interleaved array : class, interleaved array[0] contains array 0[0], interleaved array[1] contains array 1[0], interleaved array[n-1] contains array n-1[0], interleaved array[n] contains array 0[1], and so on, where n is the number of input terminals.

Examples

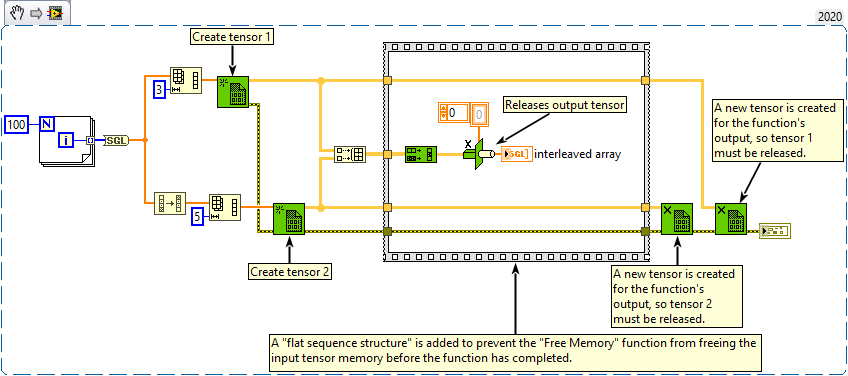

All these examples are snippets PNG, you can drop these Snippet onto the block diagram and get the depicted code added to your VI (Do not forget to install Accelerator library to run it).

Documentation illustration (illustration unavailable in the archive).
