axpy

Public technical reference documentation from Graiphic. For current SOTA installation and toolkit guides, visit the documentation center.

Description

This function multiplies the vector x by the scalar alpha and adds it to the vector y overwriting the latest vector with the result. Type : polymorphic.

Documentation illustration (illustration unavailable in the archive).

Input parameters

Documentation illustration (illustration unavailable in the archive). x : class, tensor of a vector with n elements.
Documentation illustration (illustration unavailable in the archive). y : class, tensor of a vector with n elements.
incx : integer, stride between consecutive elements of x.
incy : integer, stride between consecutive elements of y.
Documentation illustration (illustration unavailable in the archive). alpha : float, scalar used for multiplication.

Output parameters

Documentation illustration (illustration unavailable in the archive). y : class, tensor of a vector with n elements.

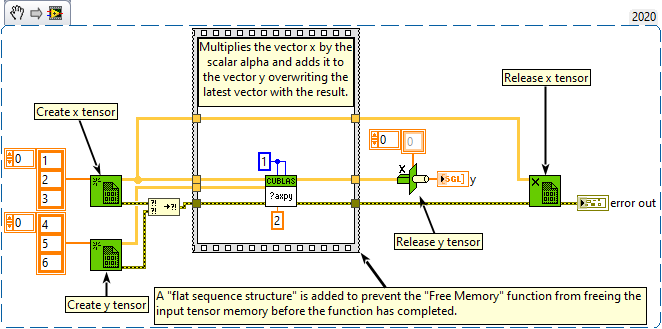

Examples

All these examples are snippets PNG, you can drop these Snippet onto the block diagram and get the depicted code added to your VI (Do not forget to install Accelerator library to run it).
